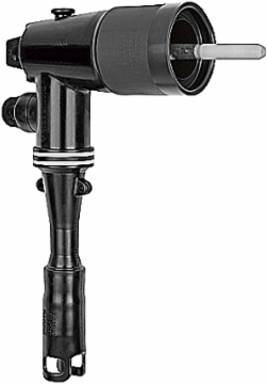

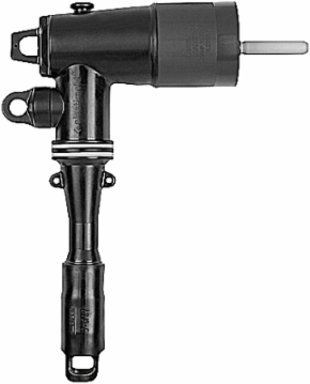

Thomas & Betts 262LRJS-E5240 Loadbreak Elbow Connector with Test Point and Jacket Seal
- MPN: 262LRJS-E5240
- UPC: 007511431224
- PPN: T-B-262LRJS-E5240
CAD
$272.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV, 200 Amps, Loadbreak Elbow, Built in Jacket Seal, Cable Insulation Diameter 1.090-1.310 inches, (27.69-33.27 mm), Bi-Metal Conductor, Conductor Size 1/0 Stranded/Compressed, 2/0 Solid/Compact. With Test Point. Kit Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installion Instruction Sheet and Crimp Chart.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in Cable Jacket Seal.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size 1/0 Stranded/Compressed, 2/0 Solid/Compact.
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
- Consist Of
- Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube Lubricant, Crimp Chart, Installation Instructions and V.D. Cap Peroxide.
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector with Test Point and Jacket Seal
ApplicationDesigned for connecting to and operating 28kV class, 200 Amp Distribution Apparatus.
SizeCable Insulation Diameter 1.090-1.310 inches
MaterialHousing - EPDM Rubber
Voltage Rating25kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
