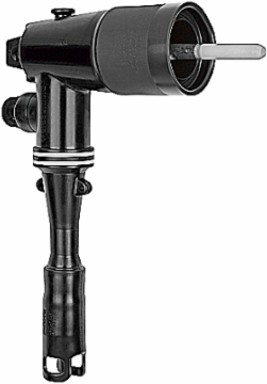

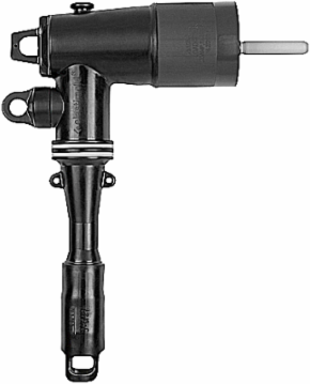

Thomas & Betts 262LRJS-C5210 Loadbreak Elbow Connector with Test Point and Jacket Seal
- MPN: 262LRJS-C5210
- UPC: 075114327138
- PPN: T-B-262LRJS-C5210
CAD
$272.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point, .805 inch - 1.060 Inch Cable Insulation Diameter, #2 Compact/Solid Wire Size, Bi-Metal Compression Lug.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- 25kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in cable jacket seal. Non-corrosive capacitive test point.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- #2 Compact/Solid
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector with Test Point and Jacket Seal
Application200 kV, 200 Amp
Size11.47 inch length x 8.20 inch width, 2.87 inch Diameter
MaterialHousing - EPDM Rubber
Voltage Rating28kV
InsulationYes, EPDM Rubber
Environmental ConditionsAll Weather Conditions
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
