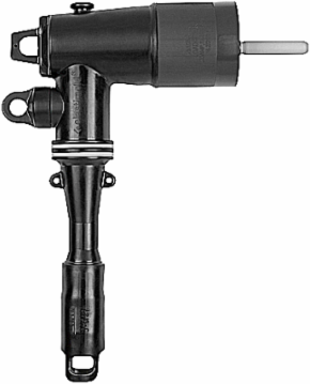

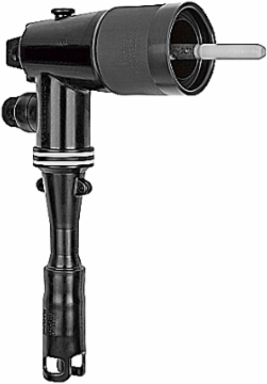

Thomas & Betts 262LRJS-E5270 Loadbreak Elbow Connector with Test Point and Jacket Seal
- MPN: 262LRJS-E5270
- UPC: 075114309530
- PPN: T-B-262LRJS-E5270
CAD
$277.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV, 200 Amps, Loadbreak Elbow, Built in Jacket Seal, Cable Insulation Diameter 1.090-1.310 inches, (27.69-33.27 mm), Bi-Metal Conductor, Conductor Size 4/0 Stranded/Compressed, 250 Solid/Compact. With Test Point. Kit Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installion Instruction Sheet and Crimp Chart.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | 25kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point. Built in Cable Jacket Seal. |
| Standard | ANSI/IEEE Standard 386 |
| Connection | Push-in |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 28kV |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | All Weather Conditions |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Loadbreak Elbow Connector with Test Point and Jacket Seal |
| Application | 25kV, 200 Amp, Loadbreak Connector |
| Size | 8.20 inch X 11.47 inch from bottom to center of Installation O-Ring, 2.86 inch Diameter |
| Conductor Range | Conductor Size 4/0 Stranded/Compressed, 250 Solid/Compact |
| Color | Black |
| Amperage Rating | 200 Amps |
| Temperature Rating | -20 Degrees C to +65 Degrees C |
| Consist Of | 1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube of Lubricant, 1 V.D. Cap-Peroxide, Crimp Chart and Installation Instructions. |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 10.5x19.12x12.5 |
|---|
