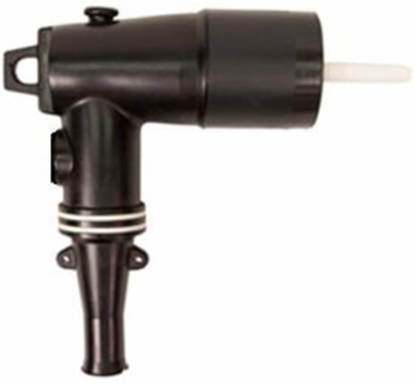

Thomas & Betts 261LR-B5220 25KV 200A LB ELBOW NOSEAL B5220
- MPN: 261LR-B5220
- UPC: 075114350891
- PPN: T-B-261LR-B5220
- UNSPSC: 39121421
CAD
$240.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25/28kV, 200 Amp, Elbow Connector, Loadbreak, No Sealing Kit, No Test Point, Cable Insulation Diameter .635-.905 inches, Bi-Metal Lug, Conductor Size #2 Stranded/Compressed or #1 Compact/Solid.
Specifications
Additional Information
- Application
- Designed for connecting to and operating 25/28kV class, 200 Amp Distribution Apparatus.
- Color
- Black
- Current Rating
- 200 A
- Environmental Conditions
- Fully Submersible
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 9.03 inches Long x 7.89 inch Wide
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 25 to 28 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20170911
IncludesElbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube Lubricant, Crimp Chart, Installation Instructions.
MaterialHousing - EPDM Rubber
Product TypeLoadbreak Elbow Connector
Special Functions25/28kV, 200 Amp Loadbreak Elbow. Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. No Sealing Kit.
Temperature Range-40 to +65 °C
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
