Thomas & Betts 162LR-B-5220 (CTN) 15KV 200A LB ELBOW B5220 CTN W/TP

MPN: 162LR-B-5220 (CTN)
UPC: 075114186421
PPN: T-B-162LR-B-5220 (CTN)
UNSPSC: 39121421

$229.50

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

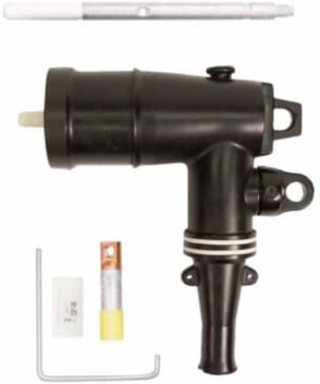

200 Amp, 15kV, Loadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.635 inch to 0.905 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.

Specifications

Additional Information

Application	The 162LR is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems.
Color	Black
Effective Date	20141025
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Special Functions	Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Non-Corrosive Capacitive Test Point.
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Current Rating	200 A
Includes	(1) Elbow Connector Housing, (1) Bi-Metal Compression Lug, (1) Probe, (1) Probe Wrench, (1) Lubricant Tube, (1) Crimp Chart, (1) V.D. Cap-Peroxide, (1) Installation Instructions
Material	Housing - EPDM Rubber
Product Type	Loadbreak Elbow Connector with Test Point
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 kV
