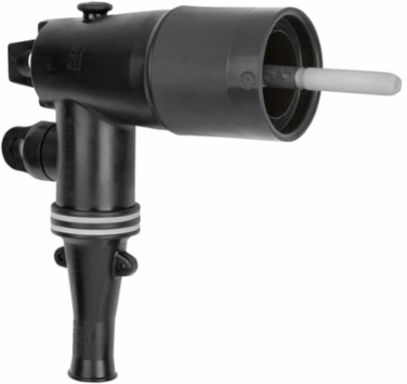

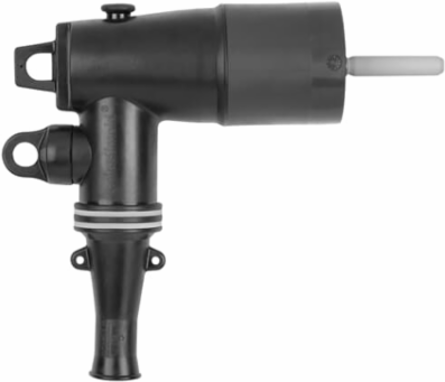

Thomas & Betts 262LR-A5230 25KV 200A LB ELBOW W/TP A5230
- MPN: 262LR-A5230
- UPC: 075114406109
- PPN: T-B-262LR-A5230
- UNSPSC: 39121421
CAD
$259.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV, 200 Amp, Loadbreak Elbow, with Test Point, Cable Insulation Diameter .575-.740 inches, Bi-Medal Lug, Conductor Size #1 AWG Stranded Compressed or 1/0 AWG Compact/Solid. No Sealing Kit. 9 inch x 8.2 inch (not counting Probe).
Specifications
Additional Information
- Application
- Designed for connecting to and operating 28kV class, 200 Amp Distribution Apparatus.
- Color
- Black
- Current Rating
- 200 A
- Environmental Conditions
- Fully Submersible
- Insulation Material
- Yes, EPDM Rubber
- Product Main Type
- ELASTIMOLD 200A SEPARABLE CONNECTORS
- Product Type
- Loadbreak Elbow Connector with Test Point
- Special Functions
- Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Effective Date20191205
IncludesElbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube Lubricant, Crimp Chart, Installation Instructions.
MaterialHousing - EPDM Rubber
Product NameELECTRICAL CONNECTOR>1000V
Size9 in x 8.2 in
StandardsANSI/IEEE Standard 386
Voltage Rating28 kV
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
