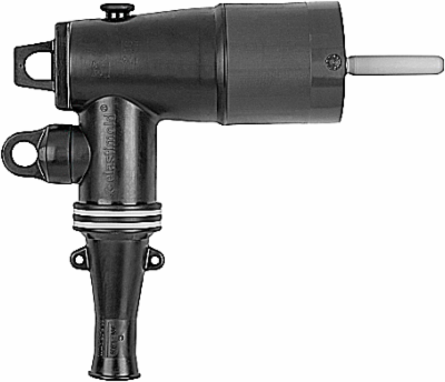

Thomas & Betts 262LR-E5270-S Loadbreak Elbow Connector with Test Point

MPN: 262LR-E5270-S
UPC: 075114336970
PPN: T-B-262LR-E5270-S

$338.87

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

25kV, 200 Amps, Loadbreak Elbow, no Sealing Kit, Cable Insulation Diameter 1.090-1.310 inches, (27.69-33.27 mm), Bi-Metal Conductor, Conductor Size 4/0 Stranded/Compressed, 250 Solid/Compact. With Test Point. Kit Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installion Instruction Sheet and Crimp Chart. S - Cold Shrinkable Jacket Seal.

Specifications

Packaging

Outer Quantity	1
Weight Uom	1 lbs. Each

Outer Dimensions (inches)	10.5x19.12x12.5

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard.
Standard	ANSI/IEEE Standard 386
Conductor Range	Conductor Size 4/0 Stranded/Compressed, 250 Solid/Compact.
Color	Black
Amperage Rating	200 Amps
Temperature Rating	-20 Degrees C to +65 Degrees C
Consist Of	Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube Lubricant, Crimp Chart, Installation Instructions.

IGCC	4586 Electrical connector assembly
Type	Loadbreak Elbow Connector with Test Point
Application	Designed for connecting to and operating 28kV class, 200 Amp Distribution Apparatus.
Size	Cable Insulation Diameter 1.090-1.310 inches,
Material	Housing - EPDM Rubber
Voltage Rating	28kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	Fully Submersible
