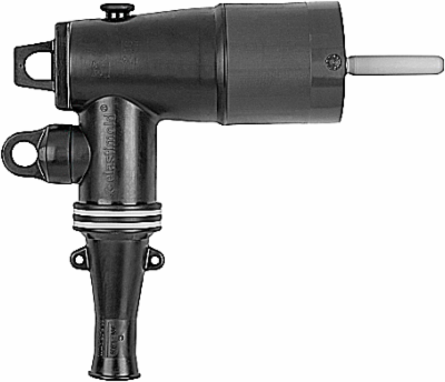

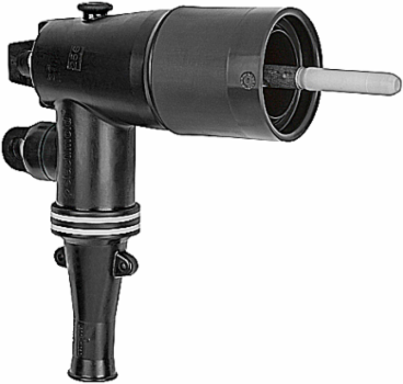

Thomas & Betts 262LR-C5230-A Loadbreak Elbow Connector with Test Point
- MPN: 262LR-C5230-A
- UPC: 075114192040
- PPN: T-B-262LR-C5230-A
CAD
$242.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 25kV, Loadbreak Elbow with Test Point, Cable Insulation Diameter 0.805 inch to 1.060 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- 28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- #1 Stranded/Compressed, 1/0 Solid/Compact, 42.41 mmSquared
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
- Consist Of
- 1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube of Lubricant, 1 Crimp Chart, 1 V.D. Cap-Peroxide, 1 Installation Instructions sheet.
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector with Test Point
Application200 kV, 200 Amp
Size9.03 inch (299.4 mm) X 8.20 inch (208.3 mm) not including probe, 2.86 inch (72.6 mm) Diameter
MaterialHousing - EPDM Rubber
Voltage Rating28kV
InsulationYes, EPDM Rubber
Environmental ConditionsAll Weather Conditions
Packaging
- Outer Quantity
- 1
- Weight Uom
- 2.3 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
