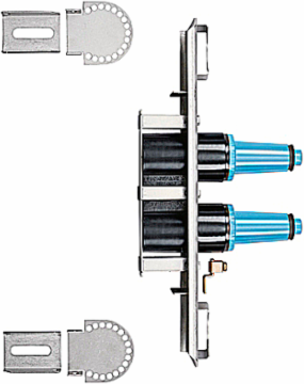

Thomas & Betts 274J2(1)-5 Loadbreak 2-Way Junction with U Straps
- MPN: 274J2(1)-5
- UPC: 783786331352
- PPN: T-B-274J2(1)-5
CAD
$744.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 25kV, Loadbreak 2 Point Junction. With U Straps. Revision 1.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- 25kV, 200 Amp Loadbreak 2-Way Junction. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provides mating for other Elastimold loadbreak type products. Provides mating for Elastimold Elbow connectors. Mounting U Straps for installation.
- Standard
- ANSI/IEEE Standard 386
- Material
- EPDM Rubber, Stainless Steel Mounting Hardware
- Voltage Rating
- 25kV
- Insulation
- Yes, EPDM Rubber
- Consist Of
- 1 Molded Junction, 2 Protective Shipping Caps, 2 Tubes Lubricant, 1 Installation Instruction Sheet, Mounting Hardware
IGCC4586 Electrical connector assembly
TypeLoadbreak 2-Way Junction with U Straps
ApplicationDesigned for subsurface, vault or padmount applications and can be used for sectionalizing, looping, tapping, and equipment bypass.
Size8.46 inch Depth, 2.50 inch Diameter, 4.00 inch Center to Center
ColorBlack
Amperage Rating200 Amps
Temperature Rating-20 Degrees C to +65 Degrees C
Packaging
- Outer Quantity
- 1
- Weight Uom
- 12 lbs. Each
Outer Dimensions (inches)9.75x8.5x3.5
