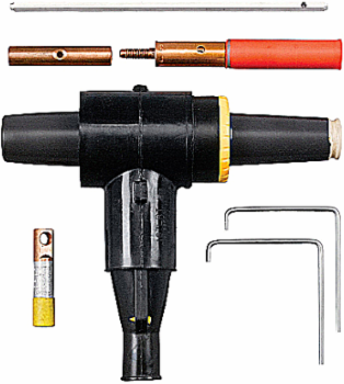

Thomas & Betts 167LRT-G-5250 Loadbreak Bolted Elbow with Tap
- MPN: 167LRT-G-5250
- UPC: 783786658787
- PPN: T-B-167LRT-G-5250
CAD
$1689.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 200 Amp, Loadbreak Bolted Elbow with Tap. Cable Insulation Diameter 0.760 inch to 0.950 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Includes 02800X Bi-Metal Contact.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size AWG Compressed Stranded 2/0 /Solid 3/0 /mmSquared 67.43.
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
IGCC4586 Electrical connector assembly
TypeLoadbreak Bolted Elbow with Tap
Application15kV, 200 Amps
SizeCable Insulation Diameter 0.760 inch to 0.950 inch.
MaterialHousing - EPDM Rubber
Voltage Rating15kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
Packaging
- Outer Quantity
- 1
Weight Uom3 lbs. Each
