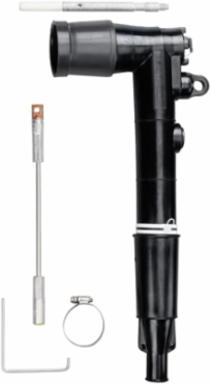

Thomas & Betts 274RLR-G-230 25KV 200A LB REPAIR ELBOW TP G-230
- MPN: 274RLR-G-230
- UPC: 783786666935
- PPN: T-B-274RLR-G-230
- UNSPSC: 39121421
CAD
$950.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.760 inch to 0.950 inch. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
Specifications
Additional
| Voltage Rating | 25 kV |
|---|---|
| Temperature Range | -40 to +65 C |
| Conductor Size | AWG Compressed Stranded #1, Solid 1/0 |
| Size | Body Width without Probe 7.63 in; Length 18.00 in from Bottom Edge to Center of Installation O-Ring |
| Material | Housing - EPDM Rubber |
| Standards | ANSI/IEEE Standard 386 |
| Environmental Conditions | All Weather Conditions |
| Brand | Elastimold |
| Current Rating | 200 A |
|---|---|
| Cable Insulation Diameter | 0.760 in to 0.950 in |
| Cross-Sectional Area | 42.41 mm2 |
| Connection Type | Compression |
| Insulation Material | EPDM Rubber |
| Color | Black |
| Country of Origin | United States (US) |
