Thomas & Betts 274RLR-G5240 25KV 200A LB REPLAC ELBOW TP G5240
- MPN: 274RLR-G5240
- UPC: 783786419555
- PPN: T-B-274RLR-G5240
- UNSPSC: 39121421
CAD
$949.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

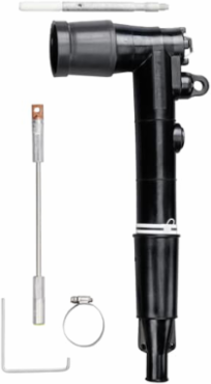

25kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. .760 inch - .950 Inch Cable Insulation Diameter, 1/0 Stranded or 2/0 kcmil Solid Wire Size, Bi-Metal Compression Lug.
Specifications
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Additional Information
- Application
- 25kV, 200 Amps
- Color
- Black
- Effective Date
- 20040116
- Includes
- 1 Elbow Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet, 1 Hose Clamp, 1 V.D. Cap-Peroxide
- Material
- Housing - EPDM Rubber
- Product Type
- Loadbreak Replacement Elbow Connector with Test Point
- Special Functions
- Replacement Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating200 A
Environmental ConditionsFully Submersible
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
SizeCable Insulation Diameter 0.760 inch to 0.950 inch
StandardsANSI/IEEE Standard 386
Voltage Rating25 kV
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
