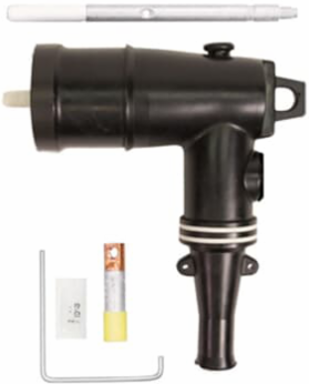

15KV 200A LB ELBOW A5220
Thomas & Betts

Thomas & Betts 161LR-A5220 15KV 200A LB ELBOW A5220

  • MPN: 161LR-A5220
  • UPC: 075114236096
  • PPN: T-B-161LR-A5220
  • UNSPSC: 39121421

CAD

$205.42

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

15KV, 200 Amp, Loadbreak Elbow, Cable Insulation Diameter 0.575 inch to 0.740 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #2/Solid #1/mmSquared 33.62.

Specifications

Additional Information

Application
The 161LR is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems.
Color
Black
Effective Date
20150414
Insulation Material
Yes, EPDM Rubber
Product Name
ELECTRICAL CONNECTOR,>1000V
Special Functions
Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection.
Temperature Range
-40 to +65 °C
Brand / LabelElastimold
Current Rating200 A
Includes(1) Elbow Connector Housing, (1) Bi-Metal Compression Lug, (1) Probe, (1) Probe Wrench, (1) Lubricant Tube, (1) Crimp Chart, (1) Installation Instructions
MaterialHousing - EPDM Rubber
Product TypeLoadbreak Elbow Connector
StandardsANSI/IEEE Standard 386
Voltage Rating15 kV

Ordering

Country of Origin
United States (US)
Selling Unit of Measureeach

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
