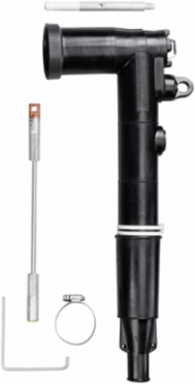

Thomas & Betts 168RLR-G5200 15KV 200A LB REPLACE ELBOW TP G5200

MPN: 168RLR-G5200
UPC: 783786459384
PPN: T-B-168RLR-G5200
UNSPSC: 39121421

$964.18

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

200 Amp, 15kV, Loadbreak Replacement Elbow Connector with Test Point, Cable Insulation Diameter 0.760 inch to 0.950 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded #4/Solid #3/mmSquared 21.14. Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact.

Specifications

Ordering

Country of Origin	United States (US)

Selling Unit of Measure	each

Additional Information

Application	Designed for connecting to and operating 15kV Class, 95kV BIL apparatus.
Color	Black
Effective Date	20050510
Includes	Includes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Installation Instructions, Crimp Chart, Hose Clamp and V.D. Cap-Peroxide.
Material	Housing - EPDM Rubber
Product Type	Loadbreak Replacement Elbow Connector with Test Point
Special Functions	Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 10-1/2 inch (266.7mm). Non-Corrosive Capacitive Test Point
Temperature Range	-40 to +65 °C

Brand / Label	Elastimold
Current Rating	200 A
Environmental Conditions	Fully Submersible
Insulation Material	Yes, EPDM Rubber
Product Name	ELECTRICAL CONNECTOR,>1000V
Size	Cable Insulation Diameter 0.760 inch to 0.950 inch
Standards	ANSI/IEEE Standard 386
Voltage Rating	15 kV
