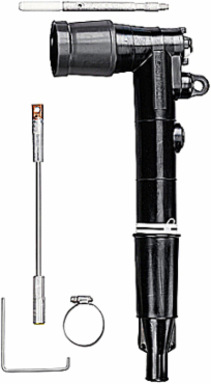

Thomas & Betts 274RLR-H-5230 Loadbreak Replacement Elbow Connector with Test Point
- MPN: 274RLR-H-5230
- UPC: 783786631544
- PPN: T-B-274RLR-H-5230
CAD
$950.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. Cable Insulation Diameter 0.850 inch to 1.050 inch. Bi-Metal Compression Lug. Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Replacement Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size AWG Compressed Stranded #1/Solid 1/0 /mmSquared 42.41.
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
- Consist Of
- 1 Elbow Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet, 1 Hose Clamp, 1 V.D. Cap-Peroxide
IGCC4586 Electrical connector assembly
TypeLoadbreak Replacement Elbow Connector with Test Point
Application25kV, 200 Amps
SizeCable Insulation Diameter 0.850 inch to 1.050 inch
MaterialHousing - EPDM Rubber
Voltage Rating25kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
Packaging
- Outer Quantity
- 10
- Weight Uom
- 4.51 lbs. Each
Outer Dimensions (inches)19.25x15x14.5
