Thomas & Betts 274RLR-J-5270 Loadbreak Replacement Elbow Connector with Test Point
- MPN: 274RLR-J-5270
- UPC: 783786656394
- PPN: T-B-274RLR-J-5270
CAD
$1009.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV 200 Amp, Loadbreak Replacement Elbow Connector with Test Point. .980 inch - 1.880 Inch Cable Insulation Diameter, 4/0 Stranded or 250 kcmil Solid Wire Size, Bi-Metal Compression Lug.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Replacement Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67.
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
- Consist Of

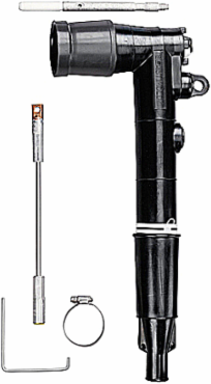

- 1 Elbow Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet, 1 Hose Clamp, 1 V.D. Cap-Peroxide
IGCC4586 Electrical connector assembly
TypeLoadbreak Replacement Elbow Connector with Test Point
Application25kV, 200 Amps
SizeCable Insulation Diameter 0.980 inch to 1.180 inch.
MaterialHousing - EPDM Rubber
Voltage Rating25kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
Packaging
- Outer Quantity
- 10
- Weight Uom
- 4.51 lbs. Each
Outer Dimensions (inches)19.25x15x14.5
