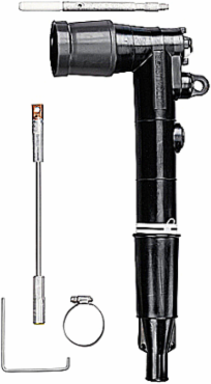

Thomas & Betts 274RLR-J-5240 Loadbreak Replacement Elbow Connector with Test Point
- MPN: 274RLR-J-5240
- UPC: 783786455478
- PPN: T-B-274RLR-J-5240
CAD
$948.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 25kV, Loadbreak Replacement Elbow Connector with Test Point, Repair Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact. Cable Insulation Diameter 0.980 inch to 1.180 inch. Bi-Metal Compression Lug, Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.
Specifications
Packaging
- Outer Quantity
- 15
- Weight Uom
- 2.45 lbs. Each
Outer Dimensions (inches)19.12x12.5x10.5
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Replacement Elbow has extended length contact and elbow housing resulting in a net gain of 8-7/8 inches in length. Includes 00400X long Bi-Metal Contact.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size AWG Compressed Stranded 1/0 /Solid 2/0 /mmSquared 53.49.
- Color
- Black
- Amperage Rating
- 200 Amps
- Temperature Rating
- -20 Degrees C to +65 Degrees C
- Consist Of
- 1 Elbow Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube Lubricant, 1 Crimp Chart, 1 Installation Instruction Sheet, 1 Hose Clamp, 1 V.D. Cap-Peroxide
IGCC4586 Electrical connector assembly
TypeLoadbreak Replacement Elbow Connector with Test Point
Application25kV, 200 Amps
SizeCable Insulation Diameter 0.980 inch to 1.180 inch.
MaterialHousing - EPDM Rubber
Voltage Rating25kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
