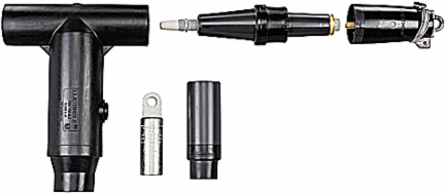

Thomas & Betts 755LRTP-P0380-DRG Stick-OP Elbow Connector
- MPN: 755LRTP-P0380-DRG
- UPC: 783786407118
- PPN: T-B-755LRTP-P0380-DRG
CAD
$1893.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 35KV, Stick Op Connector Kit with Test Point, Insulated Cap and Reducing Tap Plug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Test Point. 35kV Reducing Tap Plug. Includes Hex-Broach for Torque Installation. Peroxide-Cured Insulation and Jacket.
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
- Color
- Black
- Amperage Rating
- 600/200 Amps
- Temperature Rating
- -40 degrees to +65 degrees Celsius
- Consist Of
- Elbow Housing, Reducing Tap Plug, Insulated Cap, Cable Size Adapter, Compression Lug, Lubricant, Instruction Sheet, Crimp Chart.
IGCC4586 Electrical connector assembly
TypeStick-OP Elbow Connector
ApplicationMates with a 600 Amp elbow interface and provides a 200 Amp load break tap, an access hole thru the bore of the reducing tap plug allows use of a 600AT operating tool to bolt and secure the component to a mating 600 Amp elbow and apparatus bushing.
SizeCable Insulation Diameter 1.725 inch to 1.935 inch.
MaterialHousing - EPDM Rubber
Voltage Rating35kV
InsulationYes, EPDM Rubber
Environmental ConditionsFully Submersible
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. per 100
Outer Dimensions (inches)1x1x1
