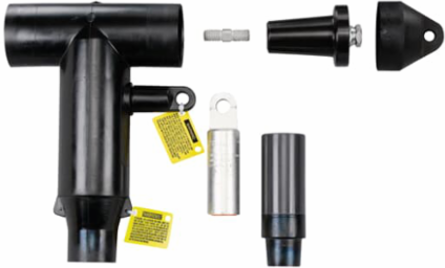

Thomas & Betts K655DLR-P0380 25KV 600A DIRECT TEST PORT NO-SEAL
- MPN: K655DLR-P0380
- UPC: 075114399258
- PPN: T-B-K655DLR-P0380
- UNSPSC: 39121421
CAD
$1073.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV, Deadbreak, 600 Series Direct Test Elbow with Insulated Plug, Cap, Stud, Lug and Cable Adapter. Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size Compressed/Stranded 700 to 750 kcmil or Compacted/Solid 900 kcmil.
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- 15/25kV, 600 Amps
- Color
- Black
- Current Rating
- 600 A
- Includes
- 1 Elbow Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 3 Tubes Lubricant, 1 Cable adapter, 1 Crimp Chart, Installation Instruction Sheets
- Material
- Housing - EPDM Rubber
- Product Type
- Deadbreak Direct Test Elbow Connector
- Special Functions
- Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators. Direct conductor test point equipped elbow.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Effective Date20190409
Insulation MaterialYes EPDM Rubber
Product NameELECTRICAL CONNECTOR>1000V
SizeWidth 10.36 inch x Length 13.00 inch from Center of Bushing Insert to T-Body Bottom.
StandardsANSI/IEEE Standard 386
Voltage Rating15 to 25 kV
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
