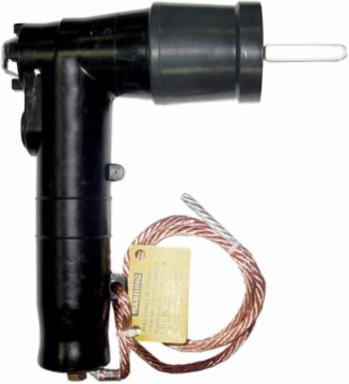

Thomas & Betts 168AFLR1-A0220 FUSED ELBOW HOUSING 8.3KV DIR TEST
- MPN: 168AFLR1-A0220
- UPC: 783786544745
- PPN: T-B-168AFLR1-A0220
- UNSPSC: 39121421
CAD
$2577.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Direct Test Ports, Small Housing, Cable Insulation Diameter 0.575 inch - 0.740 inch / 15-19mm, Aluminum Conductor size 2 AWG Stranded Compressed, 1 AWG Solid/Compact.
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Additional Information
| Application | 8.3kV, 3-45 Amps |
|---|---|
| Color | Black |
| Effective Date | 20070803 |
| Material | Housing EPDM Rubber ; Lug Aluminum |
| Product Type | Fuse Housing |
| Special Functions | Two Direct Test Ports, Small Housing |
| Temperature Range | -40 to +65 °C |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Insulation Material | EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Approximately 8-7/8 inch wide x 17 inches long |
| Standards | IEEE 386 Standard |
| Voltage Rating | 8.3 kV |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
