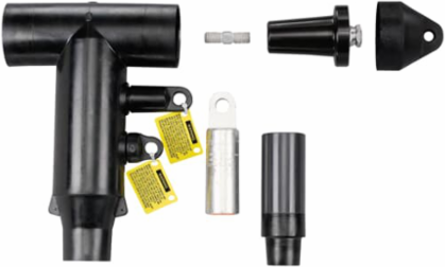

Thomas & Betts K656DLR-L0380 15-25KV DB ELBOW DIRECT TEST PORT
- MPN: K656DLR-L0380
- UPC: 075114299985
- PPN: T-B-K656DLR-L0380
- UNSPSC: 39121421
CAD
$1255.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV, Direct Test Elbow, DeadBreak, 600 Amp, Cable Insulation 1.180-1.465 inches, Aluminum Compression Lug, Conductor Size 750 Stranded/Compressed or 900 Solid/Compact.
Specifications
Additional Information
- Application
- 15/25kV, 600 Amps
- Color
- Black
- Current Rating
- 600 A
- Includes
- 1 Elbow Housing, 1 Compression Lug, 1 Stud, 1 Insulated Plug with Cap, 3 Tubes Lubricant, 1 Cable adapter, 1 Crimp Chart, Installation Instruction Sheets
- Material
- Housing - EPDM Rubber
- Product Type
- Deadbreak Direct Test Elbow with Test Point
- Special Functions
- Fully shielded, fully submersible molded rubber housing. 100 Percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators. Direct conductor test point equipped elbow.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Effective Date20160401
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
SizeWidth 10.36 inch x Length 13.00 inch from Center of Bushing Insert to T-Body Bottom.
StandardsANSI/IEEE Standard 386
Voltage Rating15 to 25 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
