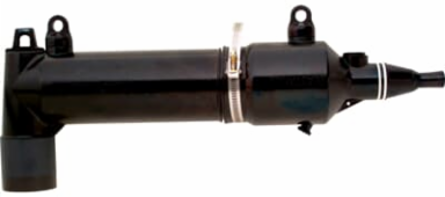

Thomas & Betts 274FLR3-C5250 25KV FUSE ELBOW 200A NO-SEALING KIT
- MPN: 274FLR3-C5250
- UPC: 075114427005
- PPN: T-B-274FLR3-C5250
- UNSPSC: 39121421
CAD
$2696.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 17.2kV, Fuse Test Port - Two Capactive Test Ports, Large Housing, Cable Insulation Diameter 0.805 inch - 1.060 inch / 20-27mm, Copper Lug for Conductor size 2/0 AWG Stranded Compressed, 3/0 AWG Solid Compact
Features
- Full-Range Current-Limiting Fusing with 50kA Interrupting Capability. Hotstick Operable 25/28kV Loadbreak Elbow Switching
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Size | Length 21.12 inches from bottom to center of Bushing |
| Material | EPDM Rubber |
| Color | Black |
| Insulation | Yes, EPDM Rubber |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | Protect Light Duty Underground Distribution Systems |
| Standard | IEEE 386, ANSI C37.40, ANSI C37.41, ANSI C37.47 |
| Conductor Range | 2/0 STR/COMPR AWG , 3/0 SOL/COMPT AWG |
| Voltage Rating | 15.5 to 16.2 kV |
| Amperage Rating | 200 A |
| Temperature Rating | -40 to +65 C |
