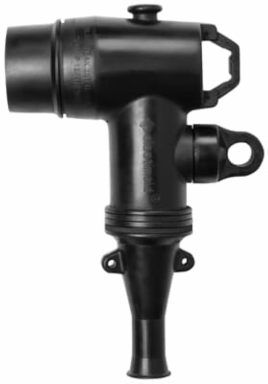

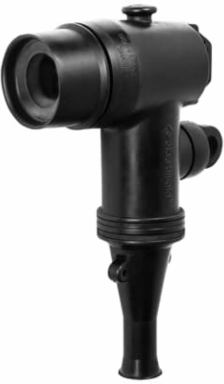

Thomas & Betts 252LR-E2095-G 25KV 200A DB - IEC NO SEALING KIT
- MPN: 252LR-E2095-G
- UPC: 075114392174
- PPN: T-B-252LR-E2095-G
- UNSPSC: 39121421
CAD
$390.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
12/20kV (24 kV), IEC 250 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 1.09-1.31 inches (27.48-33.27mm), Copper Lug, Conductor Size 95 mm2. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Standard Bail Assembly, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 5.454 x 7.531 inches, 2.097 inch diameter. Includes Bonding/Grounding Wire. IEC 60502-4, CEN 629.1 S2.
Features
- Fully Shielded, fully Submersible Molded Rubber Housing. Provision for Hot Stick Operation. Non-Corrosive, Capacitive Test Point. Includes Bonding/Grounding Wire
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Size | Length 7.531 inch from bottom edge to center of Installation O-Ring. Width 5.454 inch |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes EPDM Rubber |
| Environmental Conditions | Fully Submersible |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 15/25kV, 200 Amp Deadbreak Connector |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 95 mm |
| Voltage Rating | 15 to 25 kV |
| Amperage Rating | 250 A |
| Temperature Rating | -40 to +65 C |
