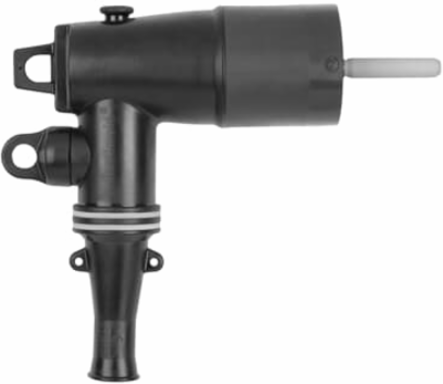

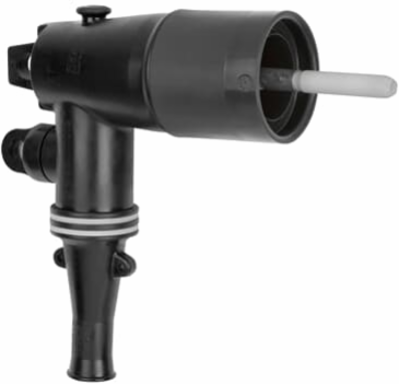

Thomas & Betts 262LR-D5230-SG3 25KV LB ELBOW 200A W-SEALING KIT
- MPN: 262LR-D5230-SG3
- UPC: 075114405027
- PPN: T-B-262LR-D5230-SG3
- UNSPSC: 39121421
CAD
$402.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
15/25kV, 200 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.890-1.220 inches (22.61-30.99mm), Bi-Metal Lug, Conductor Size 230 - #1 Stranded/Compressed or 1/0 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Bail Assembly, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 5.454 x 9.03 inches tall, 2.097 inch diameter. Includes SG3 - Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
Features
- 28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Standard
- ANSI/IEEE Standard 386
- Conductor Range
- #1 STR/COMPR AWG , 1/0 SOL/COMPT AWG
- Voltage Rating
- 28 kV
- Amperage Rating
- 200 A
- Temperature Rating
- -40 to +65 C
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application28 kV, 200 Amp
Size9.03 inch (299.4 mm) X 8.20 inch (208.3 mm) not including probe, 2.86 inch (72.6 mm) Diameter
MaterialHousing - EPDM Rubber
ColorBlack
InsulationYes EPDM Rubber
Environmental ConditionsAll Weather Conditions
