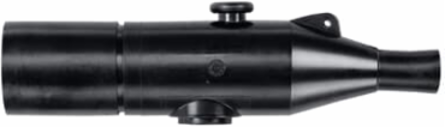

25KV STRAIGHT RECEPTACLE NO SEALING
Thomas & Betts

Thomas & Betts K151SR-A2240 25KV STRAIGHT RECEPTACLE NO SEALING

  • MPN: K151SR-A2240
  • UPC: 075114411011
  • PPN: T-B-K151SR-A2240
  • UNSPSC: 39121421

CAD

$360.40

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

200 Amp, 15/25kV, Deadbreak Elbow, Straight Receptacle, Bails are required but not included, order separately. Cable Insulation Diameter 0.575 inch to 0.740 inch. Copper Compression Lug. Conductor Size AWG Compressed Stranded 1/0 or Solid Compact 2/0 or 53.49 mm2. Includes Straight Receptacle Housing, Receptacle Pin Connector, Lubricant, Installation instructions and Crimp Chart

Features

  • Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for ground wire connection. Wide cable range with minimum number of sizes. No Test Point

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
United States
Buy American Act (BAA) Compliant
Contact Manufacturer
Brand Name
ELASTIMOLD
Connection
Compression
Size
2.74 inch wide x 9.54 inches long
Material
Housing - EPDM Rubber
Color
Black
Insulation
Yes EPDM Rubber
Environmental Conditions
Fully Shielded, Fully Submersible
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
ApplicationDesigned to connect a cable to another cable or apparatus
StandardANSI/IEEE Standard 386
Conductor Range1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG , 53.49 mm2
Voltage Rating15 to 25 kV
Amperage Rating200 A
Temperature Rating-40 to +65 C
