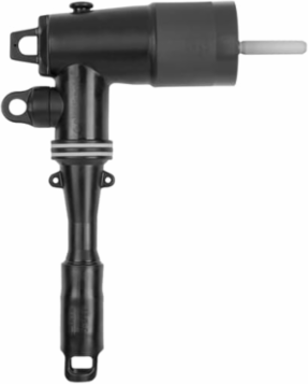

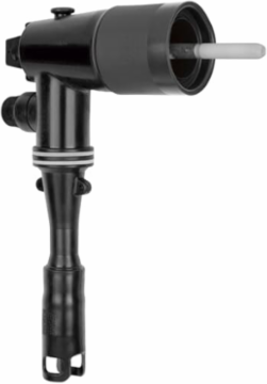

Thomas & Betts 262LRJS-D5230 25KV 200A ELBOW LB W-JACKET SEAL
- MPN: 262LRJS-D5230
- UPC: 075114406604
- PPN: T-B-262LRJS-D5230
- UNSPSC: 39121421
CAD
$271.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point, .890 inch - 1.220 Inch Cable Insulation Diameter, #1 Stranded - Compressed or 1/0 Compact - Solid Wire Size, Bi-Metal Compression Lug.
Specifications
Additional Information
- Application
- 25 kV, 200 Amp
- Color
- Black
- Current Rating
- 200 A
- Environmental Conditions
- All Weatheronditions °C
- Insulation Material
- Yes, EPDM Rubber
- Product Main Type
- ELASTIMOLD 200A SEPARABLE CONNECTORS
- Product Type
- Loadbreak Elbow Connector with Test Point and Jacket Seal
- Special Functions
- 25kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in cable jacket seal. Non-corrosive capacitive test point.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Effective Date20200114
Includes1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube of Lubricant, 1 Butyl Auto Tape, 1 Crimp Chart, 1 V.D. Cap-Peroxide, 1 Installation Instructions sheet.
MaterialHousing - EPDM Rubber
Product NameELECTRICAL CONNECTOR>10000V
Size11.47 inch length x 8.20 inch width, 2.87 inch Diameter
StandardsANSI/IEEE Standard 386
Voltage Rating28 kV
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
