Thomas & Betts K656ETP-M0330-DRG-S Window-Op Connector
- MPN: K656ETP-M0330-DRG-S
- UPC: 007511430241
- PPN: T-B-K656ETP-M0330-DRG-S
CAD
$1406.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

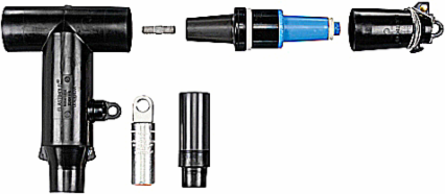

25kV, 600 Amp, Test and Ground Connector Kit with Test Point (Window Op). Cable Insulation 1.370-1.630 inches, Aluminum Compression Lug, Conductor Size 500 Stranded/Compressed, Includes Insulated Cap, Test and Ground Reducing Tap Plug, Elbow Housing, Cable Adapter and Compression Lug. Cold Shrinkable Jacket Seal
Specifications
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 4.37x13.25x10.5 |
|---|
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | Capacitive Test Point, Insulated Cap and Sealing Kit |
| Standard | ANSI/IEEE Standard 386 |
| Connection | Crimped Compression Lug |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 25kV |
| Insulation | Yes, EPDM Rubber |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Window-Op Connector |
| Application | 600 Amps, 25kV |
| Size | Cable Insulation Diameter 1.370 inch to 1.630 inch. |
| Conductor Range | Conductor Size kcmil Compressed/Stranded 500 or Compacted/Solid 600. |
| Color | Black |
| Amperage Rating | 600 Amps |
| Temperature Rating | -20 Degrees C to +65 Degrees C |
