Thomas & Betts 656ETP-M0380-DRG-S Window-Op Connector
- MPN: 656ETP-M0380-DRG-S
- UPC: 078378639832
- PPN: T-B-656ETP-M0380-DRG-S
CAD
$1253.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

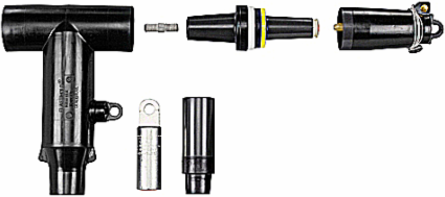

600 Amp, Dead Break, Elbow Connector, Test and Ground Connector Kit withCapacitive Test Point, 15KV, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 700/750, Solid 900. 200ECS Jacket Seal Included.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | Capacitive Test Point, Insulated Cap and Sealing Kit |
| Standard | ANSI/IEEE Standard 386 |
| Connection | Crimped Compression Lug |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 15kV |
| Insulation | Yes, EPDM Rubber |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Window-Op Connector |
| Application | 600 Amps, 15kV |
| Size | Cable Insulation Diameter 1.370 inch to 1.630 inch. |
| Conductor Range | Conductor Size kcmil Compressed/Stranded 700/750 or Compacted/Solid 900. |
| Color | Black |
| Amperage Rating | 600 Amps |
| Temperature Rating | -40 degrees to +65 degrees Celsius |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
