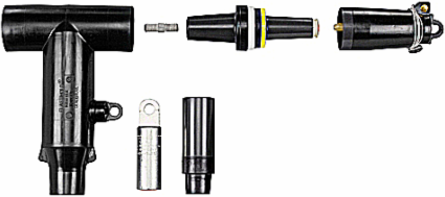

Thomas & Betts 656ETP-G0240-DRG-S Window-Op Connector
- MPN: 656ETP-G0240-DRG-S
- UPC: 075114155939
- PPN: T-B-656ETP-G0240-DRG-S
CAD
$1235.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Test and Ground Connector Kit, Insulated Cap. Cable Insulation Diameter 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1/0 /Compacted Solid 2/0. 200ECS Cold-Shrinkable Jacket Seal Included.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121421 Electrical connector assembly |
|---|---|
| Brand Name | Elastimold |
| Special Features | Capacitive Test Point, Insulated Cap and Sealing Kit |
| Standard | ANSI/IEEE Standard 386 |
| Connection | Crimped Compression Lug |
| Material | Housing - EPDM Rubber |
| Voltage Rating | 15kV |
| Insulation | Yes, EPDM Rubber |
| IGCC | 4586 Electrical connector assembly |
|---|---|
| Type | Window-Op Connector |
| Application | 600 Amps, 15kV |
| Size | Cable Insulation Diameter 0.760 inch to 0.950 inch. |
| Conductor Range | Conductor Size AWG Compressed/Stranded 1/0 or Solid/Compact 2/0. |
| Color | Black |
| Amperage Rating | 600 Amps |
| Temperature Rating | -20 Degrees C to +65 Degrees C |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 4.37x13.25x10.5 |
|---|
