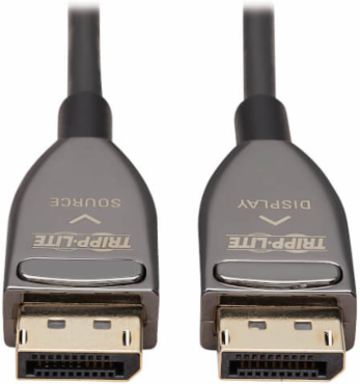

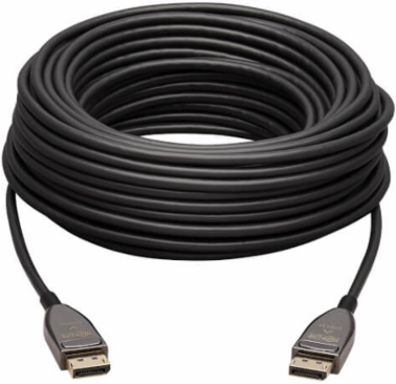

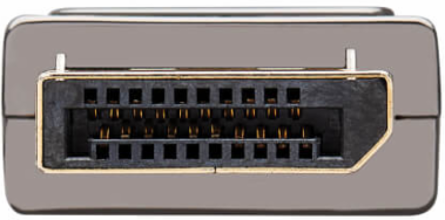

Tripp Lite P580F325M8K6 DisplayPort Active Optical Cable (AOC), 8K 60 Hz (M/M), CL3 Rated, Latching Connectors, Black, 25 m (82 ft.)

MPN: P580F325M8K6
UPC: 037332259912
PPN: TRP-P580F3-25M-8K6

$423.20

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

DisplayPort Active Optical Cable (AOC), 8K 60 Hz (M/M), CL3 Rated, Latching Connectors, Black, 25 m (82 ft.)

Documentation & Downloads

Specifications

Dimensions

Cable Length	82 ft
Wire Gauge	30
Video Input	DisplayPort (Male)
Side A - Connector 1	DisplayPort (Male)
Connector Style	Straight
Form Factor/Mounting Options	Cable

Cable Outer Diameter	4.8 mm
Minimum Bend Radius	48mm
Video Output	DisplayPort (Male)
Side B - Connector 1	DisplayPort (Male)
Number of Displays	1

Material

Product Type	Active Optical Cable (AOC)
Color	Black
Cable Jacket Material	PVC
Connector Plating	Gold

Technology	DisplayPort
Material of Construction	PVC + Zinc Alloy
Cable Jacket Rating	CL3

Performance

Max Supported Video Resolution	7680 x 4320 (8K) @ 60Hz
Max Supported Color Depth	36-bit True Color
Chroma Sub Sampling	4:2:0; 4:2:2
Power Over Cable (PoC) Support	No
HDCP Specification	1.4; 2.2
Storage Temperature Range	-40° to 158°F (-40° to 70°C)
Storage Humidity Range	5% to 90% RH, Non-Condensing

Signal Range	25 m (82 ft)
HDR Support	Yes
Signal Transmission	Unidirectional
Displayport Specification	1.4
Operating Temperature Range	32° to 113°F (0° to 45°C)
Operating Humidity Range	10% to 85% RH, Non-Condensing
