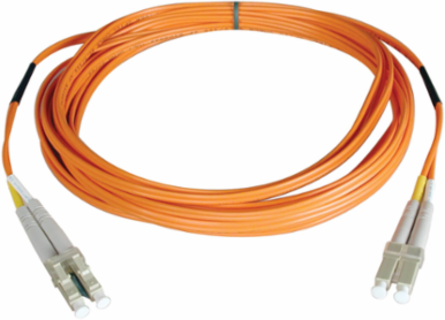

Tripp Lite N520-25M Duplex Multimode 50/125 Fiber Patch Cable, 25M (82 ft.), LC/LC, OM2
- MPN: N520-25M
- UPC: 037332123596
- PPN: TRP-N520-25M
CAD
$62.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Duplex Multimode 50/125 Fiber Patch Cable, 25M (82 ft.), LC/LC, OM2
Features
- Perfect for use with Fibre Channel Controller Cards and Switches
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth, optimized for gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
- Premium PVC multimode patch cables
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Documentation & Downloads
Specifications
Additional
- Bandwidth @ 1300NM
- 600 MHz-KM minimum
- Attenuation @ 850NM
- 3.5 dB/KM maximum
- Optical Mode
- OM2
- Number of Fibers
- 2
- Clad Diameter
- 125 micron
- Secondary Coating Diameter
- 900 +/- 50 microns
- Connectors
- LC duplex (male)
- Proof Test Level
- 100,000 PSI
- Primary Coating Material
- Acrylate
- Approvals
- FDDI and OFNR rated
Bandwidth @ 850NM220 MHz-KM minimum
Attenuation @ 1300NM1.0 dB/KM maximum
Network Speed1 Gbps
Core Diameter50 micron
Primary Coating Diameter245 +/- 15 microns
Cable Length25 m (82 ft)
Numerical Aperture.275 nominal
Cable Jacket RatingLSZH
Secondary Coating MaterialPVC
ColorOrange
