Tripp Lite P580F330M8K6 DisplayPort AOC Cable, 8K 60 Hz, M/M, Latching, CL3 Rated, Black, 30 m

MPN: P580F330M8K6
UPC: 037332259936
PPN: TRP-P580F3-30M-8K6

$451.41

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

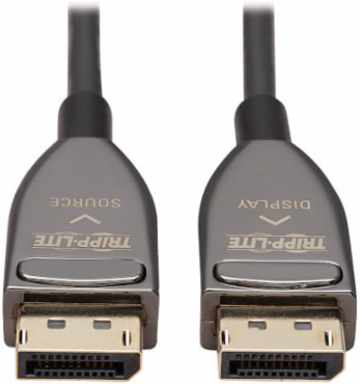

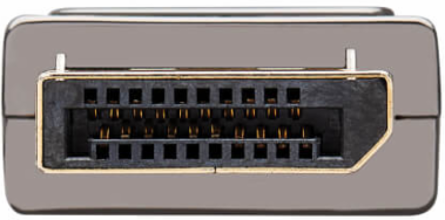

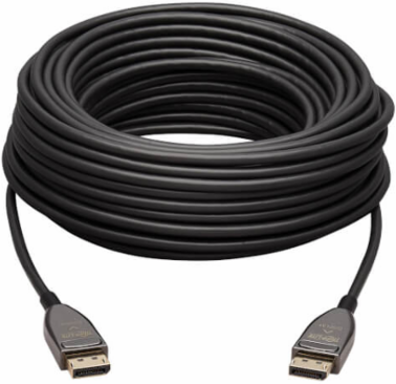

DisplayPort Active Optical Cable (AOC), 8K 60 Hz (M/M), CL3 Rated, Latching Connectors, Black, 30 m (98 ft.)

Documentation & Downloads

Specifications

Dimensions

Cable Length	98.4 ft (30 m)
Minimum Bend Radius	48 mm
Video Output	DisplayPort (Male)
Number of Displays	1

Cable Outer Diameter	4.8 mm
Video Input	DisplayPort (Male)
Connector Style	Straight
Form Factor/Mounting Options	Cable

Material

Material of Construction	PVC, Zinc Alloy
Cable Jacket Rating	CL3
Connector Plating	Gold

Cable Jacket Material	PVC
Color	Black

Compliance

Displayport Specification	1.4
Product Warranty Period	3-year limited warranty

HDCP Specification	1.4; 2.2

Reference

Product Type	Active Optical Cable (AOC)

Technology	DisplayPort

Performance

Max Supported Video Resolution	7680 x 4320 (8K) @ 60Hz
HDR Support	Yes
Signal Transmission	Unidirectional
Operating Temperature Range	32° to 113°F (0° to 45°C)
Operating Humidity Range	10% to 85% RH, Non-Condensing

Max Supported Color Depth	36-bit True Color
Chroma Sub Sampling	4:2:0; 4:2:2
Power Over Cable (PoC) Support	No
Storage Temperature Range	-40° to 158°F (-40° to 70°C)
Storage Humidity Range	5% to 90% RH, Non-Condensing
