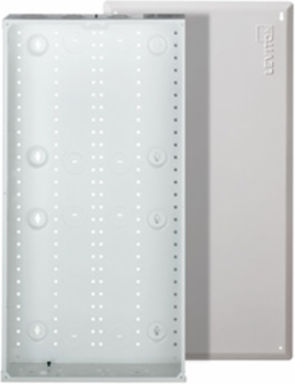

Leviton 47605-28W 28 Inch Structured Media Enclosure, Metal, White, 18 Gauge Steel, Max. Module Capacity 8
Leviton 47605-28W 28 Inch Structured Media Enclosure, Metal, White, 18 Gauge Steel, Max. Module Capacity 8
- MPN: 47605-28W
- UPC: 078477113226
- PPN: LEV-47605-28W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$283.16/ EA
Description
28" Structured Media Enclosures terminate home-run wires from wall outlets and provide a distribution point for voice, data, and video wiring in a residence or multiple dwelling unit. These enclosures are ideal for new installations or retrofits. They can be surface mounted or recessed by mounting between wall studs (on 16-inch centers), using provided wood screws for a clean and professionally finished appearance
Features
- Cutout pattern in bottom accommodates single gang or full width
- AC power modules and Mini and Universal DC power supplies
- Mounting slots on the enclosure simplify adjustment for different sheetrock depths
- Sheetrock depth marks (1/2-inch, 5/8-inch and 3/4-inch) on the enclosure simplify alignment
- Lance slots provide clean cable management within the enclosure
- Product may be surface or recess mounted
- Ships with a cardboard insert to help prevent drywall debris or paint overspray from entering the enclosure during the rough-in stage of installation
- Keyhole slots on the cover allow for easier installation
- Multiple knockouts on the top support conduit up to two inches in diameter and facilitate cable routing and entry
- Self-healing foam grommets protect cable bundles
- Holds quarter-, half-, and full-width expansion modules, with the ability to mount most modules vertically or horizontally
- Three enclosure cover types are available: Flush-Mount Cover, Economy Hinged Door, and Premium Vented Hinged Door
Specifications
Standards and Certifications
- ACA Listed
- Yes
- FCC Rated
- Part 68
- UL Listed
- Fire and Burglary
CULUS ListedYes
TIA/EIA568-A 570-A
Material Specifications
- Color
- White
- Gauge of Steel
- 18 Gauge
Enclosure MaterialSteel
Paint FinishPowder-Coated
Mechanical Specifications
- Knockouts
- Multiple up to 2 Inch
- Notes
- Module count dependant of the type used.
Max. Module Capacity8
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Dimensional Data
- Depth
- 3.85 Inch
- Width
- 14.38 Inch
Height28 Inch
Product Features
- Item
- Enclosure and Flush Mount Cover
- Standards and Certifications
- ACA/CULUS/UL/TIA/EIA/FCC
SeriesSeries 280
Warranty2-Year Limited
