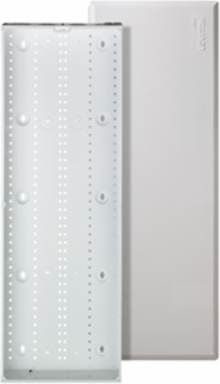

Leviton 47605-42W 42 Inch Structured Media Enclosure, Metal, White, Powder-Coated with 12 Module Capacity
Leviton 47605-42W 42 Inch Structured Media Enclosure, Metal, White, Powder-Coated with 12 Module Capacity
- MPN: 47605-42W
- UPC: 078477046104
- PPN: LEV-47605-42W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$430.14/ EA
Description
42" Structured Media Enclosures terminate home-run wires from wall outlets and provide a distribution point for voice, data, and video wiring in a residence or multiple dwelling unit. These enclosures are ideal for new installations or retrofits. They can be surface mounted or recessed by mounting between wall studs (on 16-inch centers), using provided wood screws for a clean and professionally finished appearance
Features
- 42" x 14.38" x 3.60"
- Positive stops on housing side walls prevent enclosure from falling through studs during installation.
- One piece white steel unit hold full and half width expansion modules.
- Mounting guides on cover align screw-holes and reduce the chances of dropping during attachment.
- Powder-coated white cover features a 3/4 Inch overlap to hide irregular drywall cuts.
- Multiple knock-outs on top and bottom including two new 2 Inch knock-outs on top, facilitate cable entry and routing.
- Cut-out in base of enclosure for mounting single gang J-Box kit.
- Six 3 Inch square self-healing foam grommets accommodate cable bundles.
Specifications
Standards and Certifications
- ACA Listed
- Yes
- FCC Rated
- Part 68
- UL Listed
- Fire and Burglary
CULUS ListedYes
TIA/EIA568-A 570-A
Material Specifications
- Color
- White
- Gauge of Steel
- 18 Gauge
Enclosure MaterialSteel
Paint FinishPowder-Coated
Mechanical Specifications
- Knockouts
- Multiple up to 2 Inch
- Notes
- Module count dependant of the type used.
Max. Module Capacity12
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Dimensional Data
- Depth
- 3.85 Inch
- Width
- 14.38 Inch
Height42 Inch
Product Features
- Item
- Enclosure Only
- Standards and Certifications
- ACA/CULUS/UL/TIA/EIA/FCC
SeriesSeries 420
Warranty2-Year Limited
