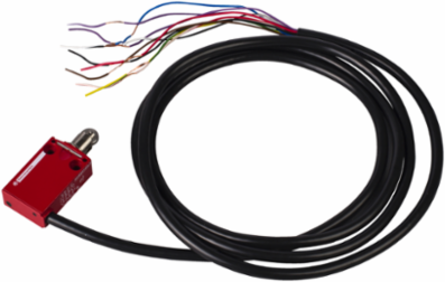

Telemecanique Sensors XCSM4102L2 Safety limit switch, Telemecanique Safety switches XCS, XCSM, metal, roller plunger, 2 NC + 2 NO, cable 2 m
- MPN: XCSM4102L2
- PPN: TES-XCSM4102L2
CAD
$194.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XCSM Miniature Safety Limit Switch has a roller plunger, a Zamak body and head and a 2 meter pre-cabled. It has 2 normally open and 2 normally closed snap action contacts. Its B10D reliability data is 50 000 000. It has IK06 impact resistance and IP66 / IP67 / IP68 degree of protection, makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
- Contacts Type And Composition
- 1 NC + 1 NC + 1 NO + 1 NO
- Product Or Component Type
- safety limit switch
- Component Name
- XCSM
- Material
- metal
- Type Of Approach
- lateral approach
- Type Of Operator
- roller plunger
Range Of ProductTelemecanique Safety switches XCS
Protection Technologyplastic protective cover, secured by 5-lobe socket head safety screw
Designminiature
Head Typeplunger head
Contact Operationsnap action
Complementary
- Height
- 70-70 mm
- Minimum Actuation Speed
- 0.01 m/min
- Fixing Mode
- by the body
- Head Material
- zamak
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60664 || 4 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 400 V 3)IEC 60947-5-1 || 300 VCSA C22.2 No 14
- Positive Opening
- with NC contact
- Maximum Actuation Speed
- 0.5 m/s
- Electrical Connection
- pre-cabled
- Cable Composition
- 9 x 0.34 mm²
- Width
- 30 mm
- Number Of Poles
- 4
Short-Circuit Protection6 A cartridge fuse gG (gl)
Repeat Accuracy0.05 mm on the tripping points
Cable Length2 m
Net Weight0.17 kg
Switch Actuationby 30° cam
Positive Opening Minimum Force35 N
Mechanical Durability10000000 cycles
Body Materialzamak
Minimum Force For Tripping7 N
Contact Code DesignationB300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN 60947-5-1 || B300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN 60947-5-1 || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A
Depth16 mm
Maximum Resistance Across Terminals25 MOhm IEC 60255-7 category 3
Environment
- Product Certifications
- UL || CSA
- Ambient Air Temperature For Operation
- -25-70 °C
- Shock Resistance
- 25 gn 18 ms IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP68 IEC 60529
- Electrical Shock Protection Class
- class I NF C 20-030 || class I EN/IEC 61140
- Protective Treatment
- TC
Ik Degree Of ProtectionIK06 EN 50102
StandardsEN/IEC 60947-5-1 || EN 1088 || EN/IEC 60204-1 || UL 508 || CSA C22.2 No 14
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Safety Reliability DataB10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
Safety Levelcan reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired IEC 61508
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110612EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI110612EN
