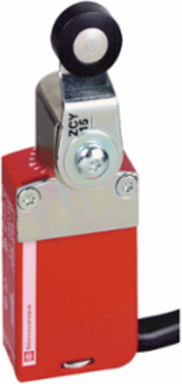

Telemecanique Sensors XCSM3902L10 Safety limit switch XCSM, metal, 2NC+1NO, cable 10 m, roller plunger
- MPN: XCSM3902L10
- PPN: TES-XCSM3902L10
CAD
$277.37
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Safety limit switch XCSM, metal, 2NC+1NO, cable 10 m, roller plunger
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Electrical connection | Pre-cabled |
|---|---|
| Switch actuation | By 30° cam |
| Contact code designation | B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to IEC 60947-5-1, B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A |
| Repeat accuracy | 0.05 mm on the tripping points |
| Body material | Zamak |
| Safety reliability data | B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Positive opening | With NC contact |
|---|---|
| Fixing mode | By the body |
| Resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Safety level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Head material | Zamak |
Main
| Range of product | Telemecanique Safety switches XCS |
|---|---|
| Component name | XCSM |
| Material | Metal |
| Protection technology | Plastic protective cover, secured by 5-lobe socket head safety screw |
| Type of operator | Roller plunger |
| Contacts type and composition | 1 NC + 1 NC + 1 NO |
| Product or component type | Safety limit switch |
|---|---|
| Design | Miniature |
| Head type | Plunger head |
| Type of approach | Lateral approach |
| Contact operation | Snap action |
| Cable composition | 7 x 0.5 mm² |
Environment
| Protective treatment | TC |
|---|---|
| Electrical shock protection class | Class I, class I conforming to IEC 61140 |
| Vibration resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IK degree of protection | IK06 conforming to IEC 62262 |
| Product certifications | CSA UL |
|---|---|
| Standards | CSA C22.2 No 14 EN 1088 IEC 60204-1 IEC 60947-5-1 UL 508 |
| Shock resistance | 25 gn for 18 ms conforming to IEC 60068-2-27 |
| IP degree of protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529 |
