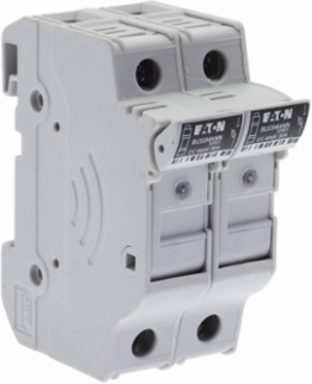

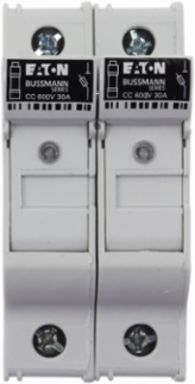

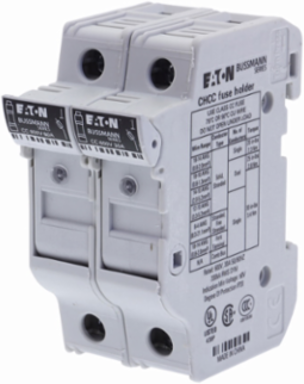

Edison CHCC2DIU Eaton Bussmann series CHCC modular fuse holder, 48 Vdc, 30A, Two-pole, With indicator
- MPN: CHCC2DIU
- UPC: 051712362689
- PPN: BUS-CHCC2DIU
CAD
$94.03
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Eaton Bussmann series CHCC modular fuse holder, 48 Vdc, 30A, Two-pole, With indicator
Features
- Engineered with a rugged, touch-safe polyamide housing, this Eaton Bussmann modular fuse holder completely encloses live electrical terminals to prevent dangerous accidental contact. This dead-front design allows commercial facility electricians to safely perform routine panel maintenance while ensuring your electrical enclosures maintain strict compliance with OSHA workplace safety standards.
- Both poles feature an integrated visual indicator that illuminates instantly the moment a circuit interruption occurs (requires 90V minimum). This smart diagnostic tool eliminates the frustrating, time-consuming need for manual multimeter testing across complex motor control centers, allowing maintenance crews to swap blown 30A fuses instantly and drastically reduce costly equipment downtime.
- Fully UL Listed and rated for 30 Amps at 600V AC/DC, this 2-pole holder delivers a massive 200,000 Amp Short Circuit Current Rating (SCCR) when paired with standard Class CC rejection fuses like the LP-CC, FNQ-R, or KTK-R. It provides uncompromised, high-performance overcurrent defense to stop catastrophic fault currents, safeguarding your expensive industrial machinery and control transformers from severe thermal damage.
- Designed to maximize valuable space in high-density industrial enclosures, this compact fuse block securely snaps onto any standard 35mm DIN rail without the need for specialized tools. Featuring dual-conductor rated box lug terminals that accept a wide range of copper wire sizes (#18 to #4 AWG), it significantly accelerates both new factory panel builds and rapid facility retrofits.
Documentation & Downloads
Specifications
Additional
- Voltage
- 48 Vdc
- Number of Poles
- Two-pole
- Height
- 2.91 in
- Weight
- 0.22 lb
- Operating Temperature Max
- 90 C
- Compliance
- RoHS Compliant
Amperage30 A
Length1.38 in
Width3.28 in
Operating Temperature Min-20 C
ClassClass CC
