Schneider Electric DF102V TeSys DF Modular Fuse Carrier 2P 32A 690VAC Blown Fuse Indicator 10x38mm
Schneider Electric DF102V TeSys DF Modular Fuse Carrier 2P 32A 690VAC Blown Fuse Indicator 10x38mm
- MPN: DF102V
- PPN: SCH-DF102V
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$82.71/ EA
Description

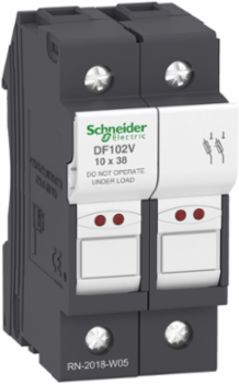

TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. It provides blown fuse indication by LED. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Specifications
Environment
- Ambient Air Temperature For Operation
- -40-70 °C with derating above 20°C
- Pollution Degree
- 3
- Compatibility Code
- DF10
- Fire Resistance
- 960 °C IEC 60695-2-1
Ip Degree Of ProtectionIP20
Ambient Air Temperature For Storage-40-70 °C
Operating Altitude0...2000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2010021EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- Height
- 79.5 mm
- Standards
- EN/IEC 60947-3 || EN/IEC 60269-2 || UL 4248-1 || CSA C22.2 No 4248-1 || EN 45545-2 R22 HL2
- Connections - Terminals
- screw clamp terminals 1 1-16 mm²rigid || screw clamp terminals 2 1-6 mm²rigid || screw clamp terminals 1 1-16 mm²flexible with or without || screw clamp terminals 2 1-6 mm²flexible with or without
- Mounting Position
- vertical +/- 23°)
- Quantity Per Set
- set of 6
- Depth
- 61 mm
Mounting Support35 mm symmetrical DIN rail
Product CertificationsIEC || UL recognized || CSA || CCC || EAC || DNV-GL
Net Weight0.085 kg
Tightening Torque2.2 N.m PZ2 || 2.2 N.m flat Ø 5.5 mm
Width35 mm
Specifications
- Fuse Size
- 10 x 38 mm
- [Ith] Conventional Free Air Thermal Current
- 32 A 20 °C
- Product Or Component Type
- fuse carrier
- Power Dissipation In W
- 3 W maximum power dissipation by fuse
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Overvoltage Category
- III
- [Ui] Rated Insulation Voltage
- 690 V AC
- [Ie] Rated Operational Current
- 32 A 400 V AC
- Poles Description
- 2P
- Device Short Name
- DF10
[Ue] Rated Operational Voltage690 V AC || 690 V DC
Fuse Type, gG || , aM
Product NameTeSys DF
Utilisation CategoryAC-20B IEC 60947-3 || DC-20B IEC 60947-3
RangeTeSys
Short-Circuit Withstand120 kA 400 V IEC 60947-3 || 120 kA 500 V IEC 60947-3
Product CompatibilityDF2CA fuse cartridge || DF2CN fuse cartridge
Control Typetoggle padlockable
Local Signallingblown fuse indication
