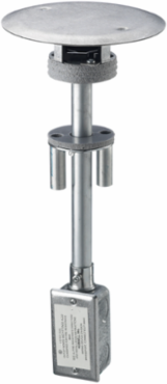

Hubbell Premise Wiring PT2X2FIT 2x2 Flush Series Fire-Rated 3 Inch Through Floor Fitting
- MPN: PT2X2FIT
- UPC: 783585531922
- PPN: HBL-PT2X2FIT
- UNSPSC: 39121328
CAD
$412.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
In-Floor Delivery Systems, 2x2 Flush Series, 3" Through Floor Fitting
Features
- 3" Fire-Rated Poke-Through
- For use with PT2X2SF Series Top Service Fittings
- (1) 3/4" EMT for Power
- (2) 1/2" EMT Stems for Low Voltage
- Includes Junction Box
Specifications
Additional
| Mounting Hole Diameter | 3 in (76.2 mm) cored concrete |
|---|---|
| Material - Mounting Hardware | Step-Down Installation |
| Type | Poke-Through |
| Cover and Flange | Flush thermoplastic cover with painted aluminum flange |
| EMT Conduits | (1) 3/4" EMT for Power, (2) 1/2" EMT Stems for Low Voltage |
| Approval | Approved for use in the City of Chicago |
| Series | 2x2 Flush Series |
| Floor Thickness | 2 1/4 to 7 in |
|---|---|
| Width | 9.500 in |
| Fire-Rating | 3 Inch Fire-Rated |
| Junction Box | Included with (8) 3/4" knockouts |
| Certifications | cULus Listed |
| Country of Origin | US |
| Compatible With | PT2X2SF Series Top Service Fittings |
