Killark

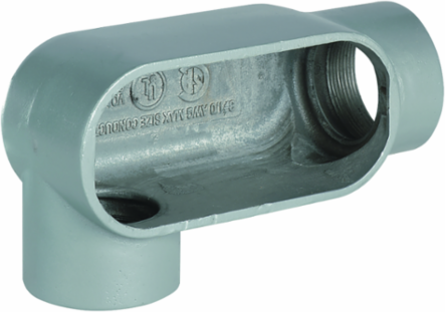

Killark LR97 3-1/2 Inch LR Hub Conduit Body, Iron, Powder Epoxy Paint, NEMA 3 Seal

3-1/2 Inch LR Hub Conduit Body, Iron, Powder Epoxy Paint, NEMA 3 Seal
  • MPN: LR97
  • UPC: 783936011288
  • PPN: HBL-LR97
  • UNSPSC: 39131708

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1262.02/ EA

Description

3-1/2" LR Hub, Iron Duraloy 7 Conduit Body

Features

  • Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
  • Suitable for wet locations when used with gaskets.
  • High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
  • Innovative spring clip design for installation ease and repeat usage.
  • For use with threaded rigid conduit steel or aluminum.
  • Flat-back design for greater wiring capacity and mounting stability.
  • Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl

Specifications

Specifications

Country of Origin
Mexico
Hazardous Rating(s)
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Color
Gray
Height
8.375 in
Length
14.875 in
Type
Conduit Body
Engineering Drawing 1 Display Text
LR97 Engineering Drawing
ARRA Compliant
Contact Manufacturer
Description - Invoice
DURALOY7 3 1/2" LR COND BDY FE
Harmonization Code
7307110030
Lead Time
42 wk
Order Multiple
1 EA
Sub Class Code
D30D230
Gross Weight with Packaging
21.8
UL File Number
E3397
Series
Duraloy 7 Series
Carton - SCC-14 Next Lower Level Sub Pack
00783936011288
Dimensions14.875 in x 8.5 in x 8.375 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
FinishPowder Epoxy Paint
Hub Size3-1/2"
Special FeaturesIntermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Width8.5 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternLR
MaterialIron
Base Unit of MeasureEA
Master Pack DescriptionEach

Certifications

EU RoHS Indicator
Contact Manufacturer

Downloads
