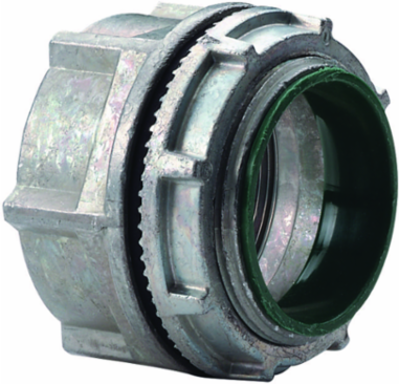

Killark WH-9 3-1/2 Inch Weatherproof Zinc Conduit Hub, Rugged Cast Zinc Construction
- MPN: WH-9
- UPC: 783936841885
- PPN: HBL-WH-9
- UNSPSC: 39131708
CAD
$322.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
3-1/2" Zinc Weather Proof Conduit Hub
Features
- Oversized locknut provides for a strong vibration-proof termination
- Captive sealing ring
- Serrations on hub body and locknut provide effective positive ground path
- Insulated throat protects conductors
- Oversized locknut provides for a strong vibration-proof termination. Captive sealing ring. Serrations on hub body and locknut provide effective positive ground path. Rugged cast zinc construction. Insulated throat protects conductors. Suitable for use wit
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 2.57 in
- Length
- 4.941 in
- Type
- Weatherproof Conduit Hub
- Finish Type
- Natural
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 2.82
- Series
- WH Series
- BOX SIZE
- 8.250x8.125x6.250 (in)
- Carton - Number of Sub Packs
- 4
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936841885
- Master Pack Description
- Each
Dimensions4.941 in x 4.941 in x 2.57 in
ApplicationConduit hubs provide a liquid tight, oil tight and dust tight termination of electrical conduit through the walls of sheet metal enclosures. The hubs fit into standard knock-out dimensions.
FinishNatural
Hub Size3-1/2"
Special FeaturesOversized locknut provides for a strong vibration-proof termination. Captive sealing ring. Serrations on hub body and locknut provide effective positive ground path. Rugged cast zinc construction. Insulated throat protects conductors. Suitable for use wit
Width4.941 in
ARRA CompliantContact Manufacturer
Description - InvoiceWEATHERPROOF CONDUIT HUB 3 1/2
Harmonization Code7907002000
Lead Time21 wk
Order Multiple1 EA
Sub Class CodeD30D236
MaterialZinc
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.280 lb.
Carton - Pack DescriptionCarton
Carton - Total Units4
NAICS Code3359323112
