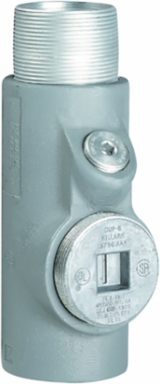

Killark ENY-2TM 3/4 Inch ENY Seal Fitting Iron, Sealing Fitting With Nipple, Powder Coated Finish
Killark ENY-2TM 3/4 Inch ENY Seal Fitting Iron, Sealing Fitting With Nipple, Powder Coated Finish
- MPN: ENY-2TM
- UPC: 783936111384
- PPN: HBL-ENY-2TM
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$60.11/ EA
Description
3/4" ENY Seal Fitting Iron, with Nipple Male/Female
Features
- Minimal turn radius for optimal spacing of both enclosures and conduit
- Large openings for ease of access to conductors for proper dam installation
- Engineered to latest 419 hub specifications for superior continuity and ingress protection
- Integral bushings to protect conductors during installation
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Specifications
Specifications
- Country of Origin
- IN
- Each - Width
- 10.000 in
- Application
- Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
- Finish
- Powder Epoxy Paint
- Hub Size
- 3/4"
- Special Features
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
- Width
- 10 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- ENY Series
- BOX SIZE
- 4.000x7.250x5.750 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936111384
- Master Pack Description
- Each
Dimensions5 in x 10 in x 0.1 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ColorGray
Height0.1 in
Length5 in
TypeSealing Fitting With Nipple
Weight1.66 lb.
ARRA CompliantContact Manufacturer
Description - InvoiceSEAL FTG 3/4" FE W/ NIPPLE
Harmonization Code7307193060
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging1.66
MaterialIron
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.300 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
