Killark

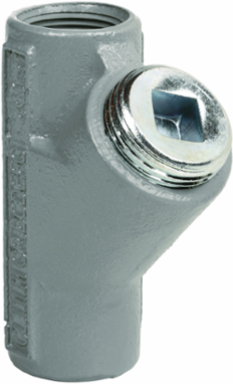

Killark EY-75 3/4 Inch Vertical Seal Fitting, Aluminum, Female/Female, Copper-Free

3/4 Inch Vertical Seal Fitting, Aluminum, Female/Female, Copper-Free
  • MPN: EY-75
  • UPC: 783936090269
  • PPN: HBL-EY-75
  • UNSPSC: 39131708

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$43.05/ EA

Description

3/4" EY Vertical Seal Fitting Aluminum, Female/Female

Features

  • Large opening for easy packing of fiber dam and pouring of compound.
  • Integral bushings in conduit hubs to protect conductor insulation from damage.
  • NPT tapped hubs to ensure ground continuity.
  • Design provides minimum turning radius.
  • 25% conductor fill.
  • Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.

Specifications

Specifications

Finish
Powder Epoxy Paint
ARRA Compliant
Contact Manufacturer
Color
Gray
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Hub Size
3/4"
Width
10 in
Finish Type
Powder Epoxy Paint
Class Code
D30
Freight Class Code
06316009
Image Actual Or Representative
R
MSDS Flag
No
Returnable Indicator
Yes
Gross Weight with Packaging
0.38
Series
EY Series
BOX SIZE
4.750x15.250x9.375 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
00783936090269
Master Pack Description
Each
Special FeaturesCopper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Country of OriginIndia
Dimensions5 in x 10 in x 0.1 in
Height0.1 in
Length5 in
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
TypeSealing Fitting
Description - InvoiceSEAL FTG AL 3/4" FEMAL/FEMAL
Harmonization Code7609000299
Lead Time49 wk
Order Multiple1 EA
Sub Class CodeD30D237
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.040 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA

Certifications

EU RoHS Indicator
Contact Manufacturer
