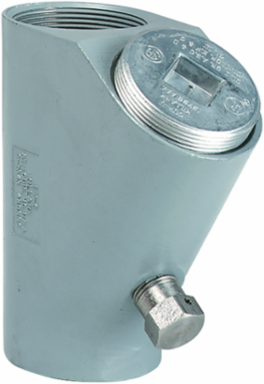

Killark EYD40-2 3/4 Inch 40% Fill Seal Fitting Aluminum with NPT Threaded Hubs
Killark EYD40-2 3/4 Inch 40% Fill Seal Fitting Aluminum with NPT Threaded Hubs
- MPN: EYD40-2
- UPC: 783936116105
- PPN: HBL-EYD40-2
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$386.51/ EA
Description
3/4" EYD 40%-Fill Ver/Hor Seal Fitting Aluminum
Features
- 40% wire fill capacity.
- Large openings with threaded closures to provide easy access to conduit hubs for making dams.
- Integral bushing in conduit hubs to protect conductor insulation from damage.
- NPT threaded hubs to ensure ground continuity.
- Minimum turning radius.
- A 40% wire fill capacity. Large openings with threaded closures to provide easy access to conduit hubs for making dams. Integral bushing in conduit hubs to protect conductor insulation from damage. NPT threaded hubs to ensure ground continuity. Minimum tu
Specifications
Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Hub Size
- 3/4"
- Type
- 40% Fill Sealing Fitting
- General Literature Asset 2 Display Text
- ENY EYD Cross Reference Guide
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SEAL FTG AL .75 IN DRAIN 40-FILL
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
Width3.125 in
ApplicationTo seal rigid conduit or IMC raceways with up to 40% wire fill.
FinishPowder Epoxy Paint
Special FeaturesA 40% wire fill capacity. Large openings with threaded closures to provide easy access to conduit hubs for making dams. Integral bushing in conduit hubs to protect conductor insulation from damage. NPT threaded hubs to ensure ground continuity. Minimum tu
General Literature Asset 1 Display TextHazardous-rated seal-off fittings in expanded trade sizes and with improved design
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.7
SeriesEYD Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936116105
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
