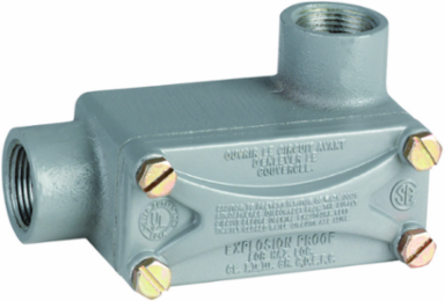

Killark XLR-2 3/4 Inch LR Type Aluminum Conduit Body, Rated for Hazardous Locations
- MPN: XLR-2
- UPC: 783936910086
- PPN: HBL-XLR-2
- UNSPSC: 39131708
CAD
$142.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
3/4" LR Type, Aluminum X Series Conduit Body
Features
- Rated for Harsh and Hazardous locations (see specifications for ratings)
- Integral bushings
- Easy access covers
- Integral bushings. Easy access covers. Volume is 6.5 cu. in.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Hub Size
- 3/4"
- Special Features
- Integral bushings. Easy access covers. Volume is 6.5 cu. in.
- Width
- 3 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 3/4" LR TYPE AL HAZ LOC FITTIN
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 0.87
- UL File Number
- E10514
- Series
- X Series
- BOX SIZE
- 4.125x11.750x7.500 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936910086
- Master Pack Description
- Each
Dimensions5 in x 3 in x 3 in
ApplicationFor use in hazardous locations.
Height3 in
Length5 in
TypeConduit Body
Engineering Drawing 1 Display TextXLR-2 Engineering Drawing
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
Hub PatternLR
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.350 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5
NAICS Code3359323110
Certifications
- EU RoHS Indicator
- Contact Manufacturer
