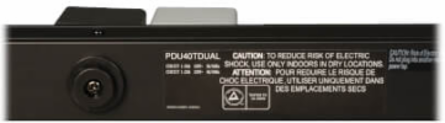

Tripp Lite PDU40TDUAL 3.8kW Dual-Circuit 120V PDU, 40 NEMA 5-15/20R Outlets, 10 ft. Cords
- MPN: PDU40TDUAL
- UPC: 037332128409
- PPN: TRP-PDU40TDUAL
CAD
$677.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
3.8kW Single-Phase Dual-Circuit 120V Basic PDU, 40 NEMA 5-15/20R Outlets, NEMA L5-20P/5-20P Inputs, 10 ft. (3.05 m) Cords, 0U
Features

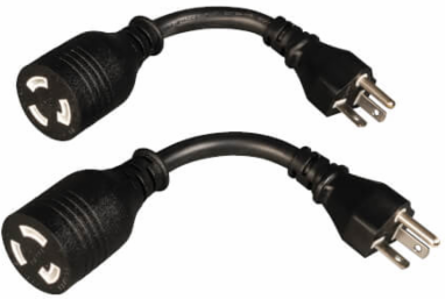

- (2) NEMA L5-20P to NEMA 5-20P Plug Set Adapters
- Mounting Hardware
- Owner's Manual
Documentation & Downloads
Specifications
Additional
- Output Receptacles
- 40 NEMA 5-15/20R
- Maximum Input Amperage
- 40A total; 20A per circuit (Agency de-rated to 32A continuous total; 16A per circuit)
- Input Phase
- Single-Phase
- Overload Protection
- Dual 20A circuit breakers; Grey circuit breaker protects grey outlets; Black circuit breaker protects black outlets
- Mounting Options
- Zero U vertical rackmount, wallmount, workbench, under counter, raceway
- Unit Weight
- 8.16 lbs
- Certifications
- UL 60950-1:2007 R10.14, CAN/CSA-C22.2 No. 60950-1-07+A1:2011+A2:2014, NOM, RoHS Compliant
- Relative Humidity
- 5 to 95% non-condensing
Output Capacity3.8 kW total; 1.9 kW per circuit at 120V; 4.0 kW total; 2.0 kW per circuit at 127V; 3.2 kW total; 1.6 kW per circuit at 100V
Input Voltage100 V; 120 V; 127 V
Frequency Compatibility50 / 60 Hz
Input Cord Length10 ft
Unit Dimensions (H x W x D)70.24 x 1.5 x 3.34 in
Material of ConstructionAnodized Aluminum
Storage Temperature Range-30 C to +50 C (-22 F to +122 F)
Warranty2-year limited warranty
