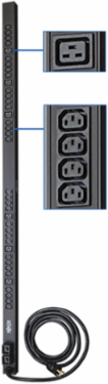

Tripp Lite PDUV30HV 5/5.8kW Single-Phase 208/240V Basic PDU, 38 Outlets (32 C13 and 6 C19), NEMA L6-30P Input, 10 ft. Cord, 0U Vertical

5/5.8kW Single-Phase 208/240V Basic PDU, 38 Outlets (32 C13 and 6 C19), NEMA L6-30P Input, 10 ft. Cord, 0U Vertical
5/5.8kW Single-Phase 208/240V Basic PDU, 38 Outlets (32 C13 and 6 C19), NEMA L6-30P Input, 10 ft. Cord, 0U Vertical
5/5.8kW Single-Phase 208/240V Basic PDU, 38 Outlets (32 C13 and 6 C19), NEMA L6-30P Input, 10 ft. Cord, 0U Vertical
  • MPN: PDUV30HV
  • UPC: 037332138910
  • PPN: TRP-PDUV30HV

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$807.33/ EA

Description

Delivers 208/240V single-phase AC power to multiple loads from a utility outlet, generator or UPS system in a high-density IT environment. Recommended for data centers, server rooms and network wiring closets.

Features

  • NEMA L6-30P input with 10 ft. (3 m) power cord
  • 38 total outlets—32 C13 and 6 C19
  • Switchless design prevents accidental shutdown
  • 63.75 in. all-metal housing
  • Supports toolless 0U vertical mounting
  • 5-year limited warranty

Specifications

Certifications

Certifications
Tested to UL60950-1 (USA, Canada), NOM (Mexico)

Physical

Form Factors Supported
0u vertical installation in equipment racks, plus under-counter and wallmount
PDU Form Factor
Vertical (0U)
Shipping Weight (lbs.)
10.80
Unit Weight (lbs.)
8
Material of ConstructionMetal
Shipping Dimensions (hwd / in.)5.00 x 3.00 x 65.50
Unit Dimensions (hwd / in.)63.75 x 2.25 x 3.75

User Interface, Alerts & Controls

Switches
n/a

Input

PDU Input Voltage
200; 208; 240
Maximum Input Amps
30
PDU Plug Type
NEMA L6-30P
Input Cord Length (ft.)
10
Recommended Electrical Service30A 208/240V
Maximum Input Amps DetailsAgency de-rated to 24A
Input PhaseSingle-Phase

Output

Frequency Compatibility
50 / 60 Hz
Output Receptacles
(32) C13; (6) C19
Overload Protection
Two 15A breakers protect 19 outlets each
Output Capacity Details5.8kW (240V), 5kW (208V), 4.8kW (200V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Output Nominal Voltage200; 208; 240

Environmental

Storage Temperature Range
5 to 122F (-15 to 50C)
Operating Elevation (ft.)
0-10,000
Relative Humidity5-95% non-condensing
Operating Elevation (m)0-3000

Overview

UPC Code
037332138910
PDU TypeBasic

Warranty

Product Warranty Period (Worldwide)
5-year limited warranty
