Brady 2HT-125-2-PK-S-2 PermaSleeve 3" High Temp PVDF Wire Marking Sleeves, 0.125 in Dia x 1 in W, Roll of 1000
- MPN: 2HT-125-2-PK-S-2
- UPC: 662820653196
- PPN: BRD-2HT-125-2-PK-S-2
CAD
$1394.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

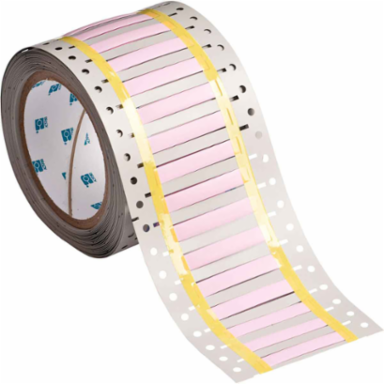

PermaSleeve® Heat-Shrink Polyvinylidene Fluoride (B-345) wire marker sleeves are specifically designed for high temperature and low vacuum outgassing applications.
Features
- 2:1 heat shrinkable sleeves are fade-resistant and flame-retardant, and meet the requirements of NASA Vacuum Outgassing specification SP-R-0022A
- Sleeves can be used in applications that require greater resistance to harsh chemicals such as fuels, lubricants and high power cleaning solvents
- Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531, MIL-STD-202, Tested per ASTM E 162, ASTM E 662; RoHS Compliant; and UL Recognized
- Operating temperature range is -55°F to 225°F (-48°C to 107°C)
Specifications
Key Specifications
- Material Number
- B-345
- Dimensions
- 0.235 in H
- Finish
- Matte
- Maximum Service Temperature °F
- 267 °F
- Maximum Wire Gauge
- 16 AWG
- Minimum Wire Diameter
- 0.062 in
- Printable Sides
- Double-Side Printable
- UPC
- 662820653196
- Quantity per Row
- 2
- Roll Width
- 2 in

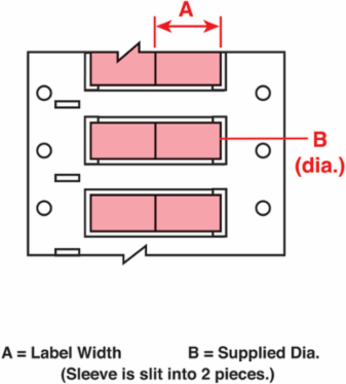

- Sleeve Size
- 0.125 in Dia x 1 in W
- Sleeve Slits
- Yes
- Trade Name
- PermaSleeve®
- Color
- Pink
- Label/Media Format
- Roll
- Material
- Polyvinylidene Fluoride
- Print Technology
- Thermal Transfer
- Suggested Ribbon Series
- R6000
Diameter as Supplied0.125 in
UOMRoll of 1000 Each
Indoor or Outdoor UseOutdoor Use
Maximum Wire Diameter0.11 in
Minimum Service Temperature °F-94 °F
Minimum Wire Gauge20 AWG
Product Number129773
Quantity per Roll1000
Recovered Diameter0.062 in
Shrink Ratio2:1
Sleeve Size(m)3.2 mm Dia x 25.4 mm W
Sleeve Width1 in
ApplicationsCable & Wire Marking
For Use with PrinterBBP®72 Label Printer, BRADY IP® Series Label Printer, BradyPrinter i5100, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer, THT 3" Core Printer
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant, Heat-Shrinkable
Resistance PropertiesChemical-Resistant, Corrosion-Resistant, High Temperature-Resistant, Humidity-Resistant, UV-Resistant, Weather-Resistant
