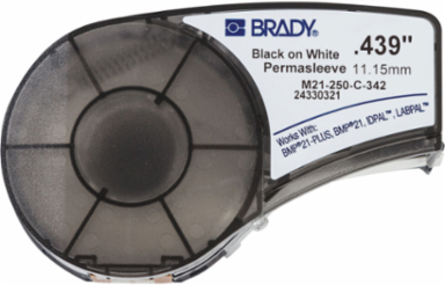

Brady M21-250-C-342 BMP21 PermaSleeve Heat Shrink Polyolefin Wire Marking Sleeves 0.25 Inch Dia x 7 ft L
- MPN: M21-250-C-342
- UPC: 662820899952
- PPN: BRD-M21-250-C-342
- UNSPSC: 55121612
CAD
$90.99
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

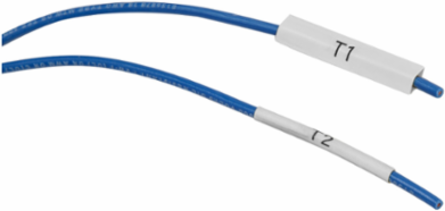

The B-342 Polyolefin PermaSleeve material is a non-adhesive, heat-shrinking sleeve that fits around wires or cables for easy permanent identification
Features
- 3:1 heat-shrinking wire sleeve is ideal for labeling in harsh environments and is resistant to chemicals, grease, oil and cleaning agents
- Polyolefin wire marking sleeves have a smudge-proof finish and print in black text on a white background
- PermaSleeve labels provide wire identification that combines speed, ease of use and permanence for long-lasting, high quality identification
- Cold resistant and flame-retardant with an operating temperature of -67° F to 275° F (-55° C to 135° C)

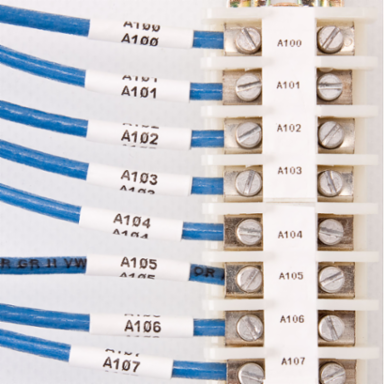

- PermaSleeve wire labels are ideal for electrical contractors, maintenance crews and industrial professionals
Documentation & Downloads
Specifications
Key Specifications
| Applications | Electrical Labeling; Wire and Cable Labeling |
|---|---|
| Color | Black on White |
| Enables Industry Compliance | ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized |
| For Use with Printer | BMP®21 LAB Label Printer; BMP®21 Labeler; BMP®21 PLUS Portable Label Printer; IDPAL™ Handheld Label Maker; LABPAL™ Handheld Label Maker |
| Manufacturer Part Number | M21-250-C-342 |
| Print Technology | Thermal Transfer |
| Printer and Label Applications | Wire & Cable |
| Printer Compatibility (Print) | BMP21-PLUS |
| Ribbon Color | Black |
| Shrink Ratio | 3:1 |
| Total Qty per Pack | 1 Roll(s) / Box |
| Brady Material Number | B-342 |
| Label Properties | Heat Shrink Sleeves |
| Material Properties | Flame-retardant; Heat-shrinkable |
| SAP B-Number | B-342 |
| Diameter as Supplied (mm/cm/m) | 6.4 mm |
| Dimensions (Metric) | 11.15 mm W x 11.2 mm H x 2.10 m L |
| Height (in/ft/yd) | 0.439 in |
| Maximum Service Temperature °C | 135 °C |
| Maximum Wire Diameter (in/ft/yd) | 0.215 in |
| Maximum Wire Gauge | 8 AWG |
| Minimum Service Temperature °F | -67 °F |
| Minimum Wire Diameter (mm/cm/m) | 2.39 mm |
| Recovered Diameter (in/ft/yd) | 0.25 in |
| Roll Length (in/ft/yd) | 7 ft |
| Size - Length (m) | 2.10 m |
| Sleeve Size (in/ft/yd) | 0.25 in Dia x 7 ft L |
| Web Width (in/ft/yd) | 0.439 in |
| Wire Diameter Range | 0.094 in to 0.215 in |
| Brand Name | Brady® |
|---|---|
| Diagram | Icon 5 (circle with centre dot) |
| Finish | Matte |
| Label/Media Format | Label/Media in Cartridge with Ribbon |
| Primary Noun, Basic Function | Heat Shrink Tubing |
| Printable Sides | Single-Side Printable |
| Printer Compatibility | BMP21-PLUS; BMP21; IDPAL |
| Quantity per Row | 1 |
| Ribbon Series | R4300 |
| Tape Color | White |
| Trade Name | BMP®21 PermaSleeve® |
| Continuous & Die-Cut Materials Supported | Continuous Tapes Only |
| Material | Heat-shrink Polyolefin |
| Resistance Properties | Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant |
| Diameter as Supplied (in/ft/yd) | 0.25 in |
| Dimensions | 0.439 in H |
| Dimensions 2 | 0.439 in H |
| Height (mm/cm/m) | 11.2 mm |
| Maximum Service Temperature °F | 275 °F |
| Maximum Wire Diameter (mm/cm/m) | 5.46 mm |
| Minimum Service Temperature °C | -55 °C |
| Minimum Wire Diameter (in/ft/yd) | 0.094 in |
| Minimum Wire Gauge | 16 AWG |
| Recovered Diameter (mm/cm/m) | 6.35 mm |
| Roll Length (mm/cm/m) | 2.13 m |
| Size - Width (mm) | 11.15 mm |
| Sleeve Size (mm/cm/m) | 6.4 mm Dia x 2.13 m L |
| Web Width (mm/cm/m) | 11.15 mm |
| Wire Gauge Range | 16 AWG to 8 AWG |
Regulatory Information
| CA Prop 65 Labeled | Yes |
|---|---|
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Warning Type | Cancer |
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| CA Prop 65 Label Warning | WARNING: Cancer - www.P65warnings.ca.gov |
|---|---|
| Contains CA PROP 65 Substance | Yes |
| Contains CA Prop 65 Cancer Causing Chemical | Antimony Trioxide |
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
