Brady 2HX-1000-2-BL-S PermaSleeve HX Heat Shrink Wire Marking Sleeves 3" Dia x 2" W, Blue
- MPN: 2HX-1000-2-BL-S
- UPC: 662820653868
- PPN: BRD-2HX-1000-2-BL-S
CAD
$402.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
Features

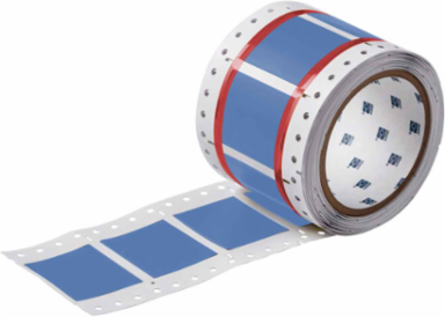

- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- RoHS compliant to 2005/618/EC MCV amendment to RoHS Directive 2002/95/EC; Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
Specifications
Key Specifications
| Material Number | B-7642 |
|---|---|
| Diameter as Supplied | 1 in |
| UOM | Roll of 100 Each |
| Maximum Service Temperature °F | 248 °F |
| Minimum Service Temperature °F | -40 °F |
| Minimum Wire Gauge | 2/0 AWG |
| Product Number | 129837 |
| Quantity per Roll | 100 |
| Recovered Diameter | 0.5 in |
| Shrink Ratio | 2:1 |

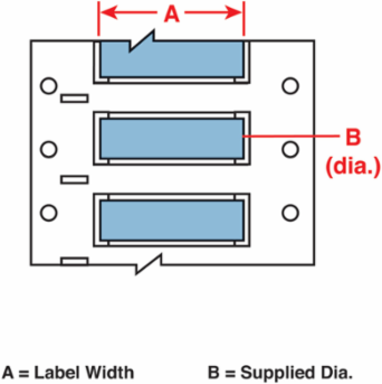

| Sleeve Size(m) | 25.4 mm Dia x 50.8 mm W |
| Trade Name | PermaSleeve® |
| Color | Blue |
| Label/Media Format | Roll |
| Material | Polyolefin |
| Print Technology | Thermal Transfer |
| Suggested Ribbon Series | R4300, R6000, R6400, R6600 |
| California Prop 65 | Cancer - || www.p65warnings.ca.gov |
|---|---|
| Dimensions | 1.66 in H |
| Finish | Matte |
| Maximum Wire Diameter | 0.95 in |
| Minimum Wire Diameter | 0.5 in |
| Printable Sides | Double-Side Printable |
| UPC | 662820653868 |
| Quantity per Row | 1 |
| Roll Width | 2 in |
| Sleeve Size | 1 in Dia x 2 in W |
| Sleeve Width | 2 in |
| Applications | Cable & Wire Marking |
| For Use with Printer | BBP®72 Label Printer, BradyPrinter i5100, BradyPrinter i7100, BRADYPRINTER PR Plus Series Label Printer, THT 3" Core Printer |
| Label Properties | Heat Shrink Sleeves |
| Material Properties | Heat-Shrinkable |
| Resistance Properties | Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Self-Extinguishing, UV-Resistant, Weather-Resistant |
